Design by Peter Query

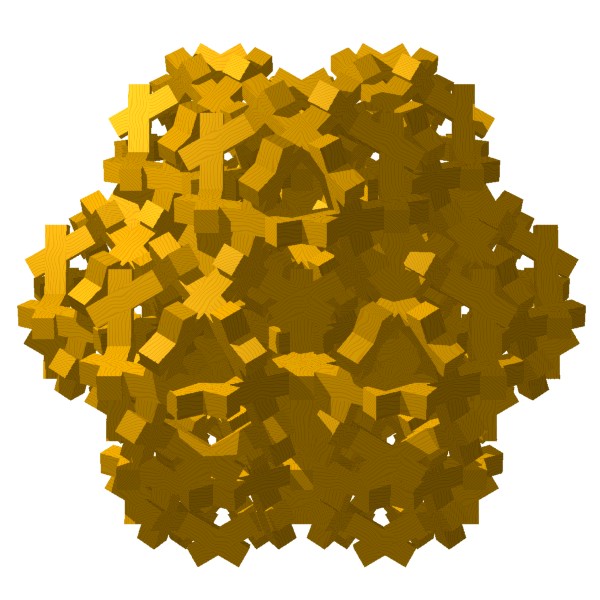

This is a beautiful puzzle which is in fact made by twelve Orion puzzles. The Orion puzzle is based upon a rhombic dodecahedron and as you can see with the Rhombic Pyramid, rhombic dodecahedrons can be piled up just like balls. Betulgeuze is a puzzle of 'piled up Orion puzzles'. This puzzle consist of 240 pieces. You can make those pieces out of pine wood with a diameter of 18 mm (a standard diameter of pine wood in The Netherlands). Every rod will be 10 cm long so at least 24 meter of wood is needed to make all the pieces. The total diameter of the constructed puzzle is more than 50 cm.

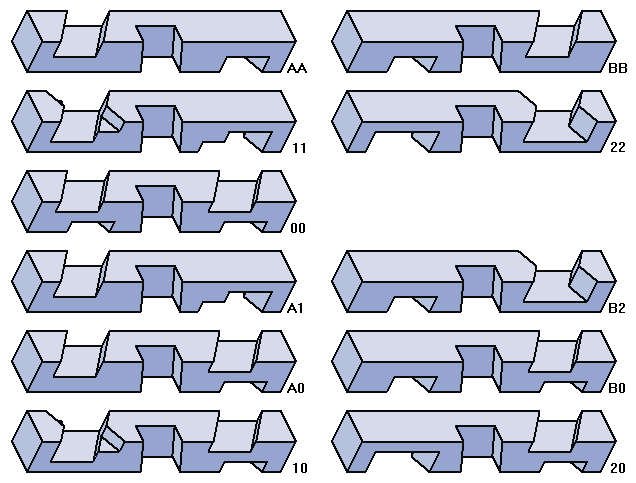

If you want to make this puzzle you could better first practice by making a 'simple' Orion puzzle. All possible pieces which could be used for constructing the Betulgeuze are shown in the diagram below. The middle most notches of the pieces are all the same. The difference between the pieces lies in the outer notches. The notches are indicated by a letter (A or B) or a figure (0-2).

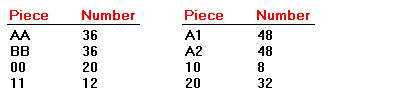

Of course you could figure out which pieces you need to construct Betulgeuze, but you can use the standard set of pieces according to the table below:

You must first make 120 crosses for constructing the puzzle. With twelve 00-11 crosses you construct the 'centre' of the puzzle. Then you make 24 crosses (eight trio's 10-20, 00-20 and 20-20 crosses) and put those on the corners of this centre. You have to put the crosses on such a way in the puzzle the 0-part of the piece points to the out side. Twenty-four A1-BB and twenty-four AA-B2 crosses can be put in the puzzle after that. You finish the constructing with twelve AA-BB crosses.

Good luck if you are planning to make and solve this puzzle....
