Design by Dan Feldman
This is a simple puzzle made
out of twelve pieces of wood. The puzzle is formed by six pairs of two pieces, a
light and a dark rod. These two pieces are hooked to each other like a cross.

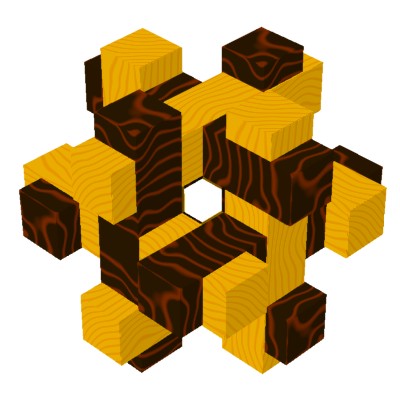

The six crosses can be constructed to the puzzle shown below. The last cross has
to finish the construction through a turning movement. When you look at the puzzle
you can imagine a cube in the middle of the puzzle. The crosses are covered the
surfaces of this cube. This given is important, because it will be used by other
cage puzzles like Orion and
Cassiopeia.
This
puzzle can of course be made of one kind of wood, but the appearance of the
puzzle is much better if you use two contrasting types. There are two different
pieces, six of each. The pieces are each other mirror images. The dimensions of
the rods are 2 x 2 x 10 units. Each rod has three notches of 2 x 2 x 1 units.
and can be sawn with a jigsaw. The distance between the notches is not a fixed
dimension but can be varied.
