Design by Peter Query
The name of this puzzle is derived from the twelve
stars which form this puzzle. A dodecahedron is the basis of this puzzle. Five

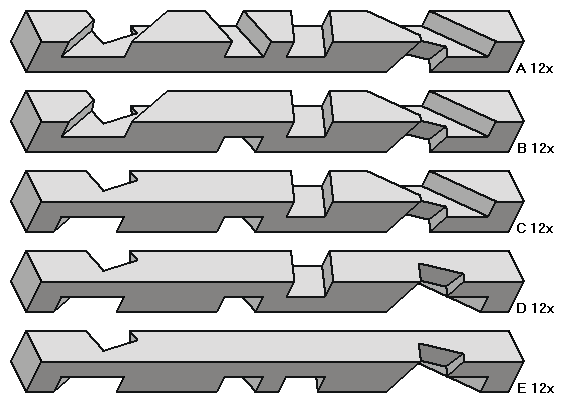

rods are constructed into a star. These five rods are shown in the diagram
below. If the five rods are put together correctly the star has five notches at
the end of every point. Twelve stars can be put together by a turning movement

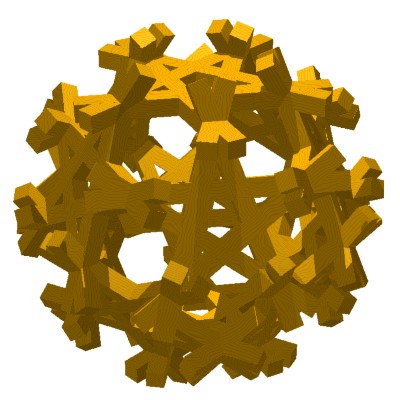

till the puzzle is formed as shown in the picture.
The 60 rods which
form this puzzle has all six notches. Four notches are necessary for
constructing the star, the other two notches are for connecting the stars to
each other. You can use the diagram below for making the pieces, every star
needs the same five pieces, so every piece has to be duplicated twelve times. To
determine the precise distance between the notches you can calculate for hours
but it is maybe easier to use the design
graph. The outer four notches partly
overlap each other so the puzzle is a bit vulnerable, so it is advised to use
rods with a diameter of at least 2 cm. The total diameter of the puzzle is then
proximately 40 cm.
